Construction Support Scaffolding Accessories Cuplock Ledger Blade
Q235 Steel
Description
Cup-Lock scaffolding system is a multi-purpose system scaffold,
suitable for access and formwork support in all types of
construction of building & civil engineering projects. This
complete galvanized system is probably the fastest and most-widely
preferred scaffold system.
The main feature of Cup-Lock is the unique node locking method
which allows up to four horizontal members to be fastened to a
vertical member in one action by a single hammer blow - without the
use of nuts and bolts or wedges.
The locking node is formed by two cups, a fixed lower cup which is
welded to the vertical member at every 500mm intervals and a
sliding upper cup. First the forged blade ends of the horizontal
member are connected loosely but safely to the lower cup.
The key strength of Cup-Lock scaffolding system is being extremely
versatile. It is ideal for many applications as formwork support,
or general access scaffold, staircase tower, mobile tower and table
form. It has flexible erection as straight, curved or circular
configuration for both access and support purposes.
Features
1. Scaffolding cups are made from nodular cast iron with high
strength and stiffness.
2. Scaffolding cuplock ledger blade is easy and quick to install
and strip, which can save your time.
3. Scaffolding cuplock ledger blade can be galvanized to prevent
rustiness and corrosion.
4. Scaffolding cuplock provides high loading capacity while its
structure is quite flexible.

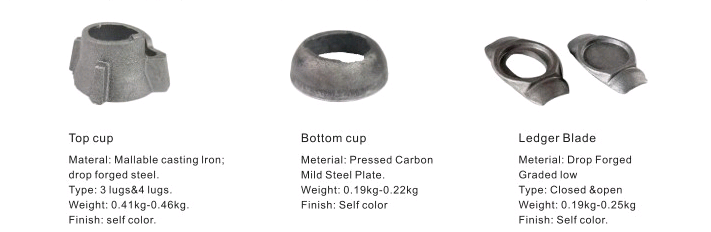

5. Scaffolding cuplock include standard, ledger, up cup bottom cup
and ledger blade
6. All the cuplock scaffolding accessories are compatible with
steel tube dia 48mm.
7. Cuplock Scaffolding bottom cup are made with teeth on the edge
to clamp the ledger blade and holes on the bottom to let water flow
out in rainy days.
8. The sizes of cuplock scaffolding accessories can be as
customer's need.
Our main products are quick lock scaffolding, cuplock scaffolding,
ringlock scaffolding, frame scaffolding, adjustable shoring props,
steel formworks, formwork clamps, steel pipes, coupler, adjustable
U head and jack base and other scaffolds.
Products are mainly exported to Africa, South Africa, Asia and
Middle East.
Product Details
| Name | Scaffolding Cuplock Ledger Blade |
| Certificate | ISO, CE |
| Surface | EG, hot dip galvanized, painted, power coated |
| Material | Q235, cast iron |
| Delivery time | Depend on customer's specific order quantities |
| Services | We can provide considerate service and good after-sales |
| OEM services | As per customer's requirement |
Our Advantages
1. We are several decades of experience in professional
manufacturer.
2. Advanced production machines.
3. We provide high-quality products at reasonable prices.
4. The strict quality control system.
5. We have a professional sales force.
6. export experience around the world.
7. We provide one-stop solution services.
FAQ
Can I have a sample for quality check?
A: Yes, we can provide 1pc sample for free, but the express cost
will be on your account.
What is the production time ?
A: Normally it is 20-40days, depending on how many orders before
you.
